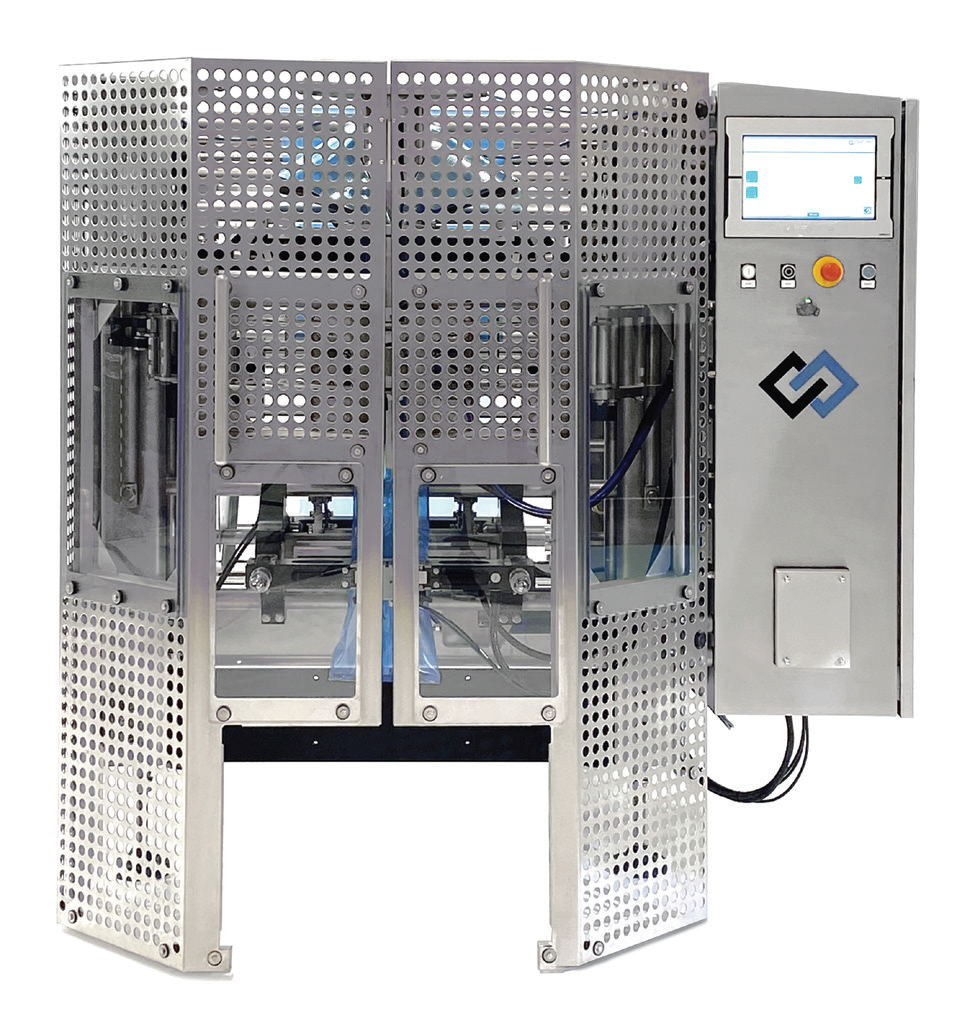

The Edge Ultra HD is the generation of i4.0 VFFS packaging technology. Designed from the ground up to be flexible, robust, smart and deliver higher production per square foot.
Unit of Measure

Specifications

Speed

 N/A Up to 120 cycles/min

Minimum Bag Width

 N/A 2 in

Maximum Bag Width

 N/A 16 in

Packaging Material

 N/A Compostables Laminates/Barrier Film Mono-Materials Other Heat Sealable Materials Paper Polyethylene (PE) Polypropylene (PP)/Oriented Polypropylene (OPP)

Pneumatic Consumption

 N/A 1 liter/bag/min

Pack Styles

 N/A 3 Side Seal Amcor EasyPack® Amcor Flexcan® Block Bottom Clip Top (Fanned) Doy-Style Many More Pillow Pillow with Gusseting Quad Bag Tetrahedron

Screen Size

 N/A 12 in

Machine Dimensions

Machine Width

 N/A 5 ft 6 in.

Machine Depth

 N/A 8 ft

Machine Height

 N/A 6 ft 6 in.

Power Requirement

Voltage

 N/A 208 to 480 V

Number of Phase

 N/A 3

Pneumatic Connection

Pneumatic Connection Pressure

 N/A 80 psi

Pneumatic Connection Diameter

 N/A 8 mm

Key Features

Key Features

 N/A
  • 12" color touchscreen HMI
  • OMAC pack ML logic
  • 200 product recipe capacity (expandable)
  • Icon-based and multi-lingual
  • Programmable access levels
  • OEE dashboard (optional)
  • Advanced product in seal detection
  • Constant web tensioning
  • Rapid size change
  • Remote support (optional)
  • Open channel frame, twin option
  • Intermittent motion
  • Servo-driven jaws
  • Tool-less knife change
  • Direct-drive servo pull belts - tool-less belt change
  • Motorized film unwind
  • IP65 rated
  • Pneumatic expanding reel shaft
  • Film auto tracking (optional)
  • MAP/gas injection (optional)
  • PEC for printed film (optional)
  • Many more...
