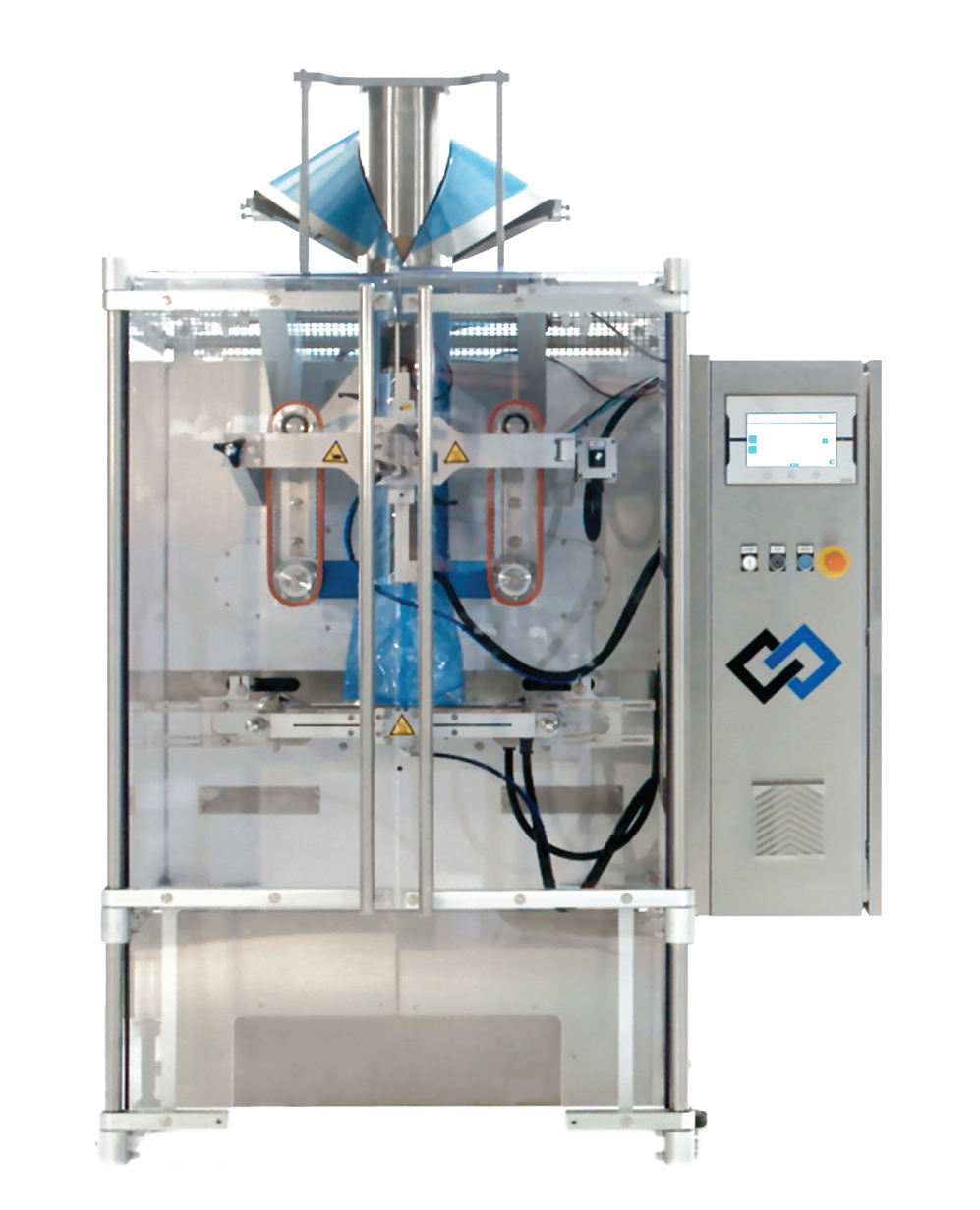

The Edge NX+ is the latest generation of i4.0 IP65 VFFS packaging technology. Designed from the ground up to be compact, smart and deliver high production per square foot.
Unit of Measure

Specifications

Speed

 N/A Up to 110 cycles/min

Minimum Bag Width

 N/A 2 in

Maximum Bag Width

 N/A 15 in

Packaging Material

 N/A Compostables Laminates/Barrier Film Mono-Materials Other Heat Sealable Materials Paper Polyethylene (PE) Polypropylene (PP)/Oriented Polypropylene (OPP)

Pneumatic Consumption

 N/A 1 liter/bag/min

Pack Styles

 N/A Block Bottom Pillow Pillow with Gusseting Quad Bag

Machine Dimensions

Machine Width

 N/A 4 ft 5 in.

Machine Depth

 N/A 7 ft

Machine Height

 N/A 5 ft 1 in.

Power Requirement

Voltage

 N/A 208 to 480 V

Number of Phase

 N/A 3

Pneumatic Connection

Pneumatic Connection Pressure

 N/A 80 psi

Pneumatic Connection Diameter

 N/A 8 mm

Key Features

Key Features

 N/A
  • Color touchscreen HMI
  • OMAC pack ML logic
  • 200 product recipe capacity
  • (expandable)
  • Icon-based and multi-lingual
  • OEE dashboard (optional)
  • Advanced product in seal detection
  • Constant web tensioning
  • Rapid size change
  • Remote support (optional)
  • IP65 closed compact frame, twin option
  • Intermittent motion
  • Servo-driven jaws
  • Direct-drive servo pull belts
  • Motorized film unwind
  • Pneumatic expanding reel shaft
  • Film auto tracking (optional)
  • MAP/gas injection (optional)
  • PEC for printed film (optional)
  • Many more...
