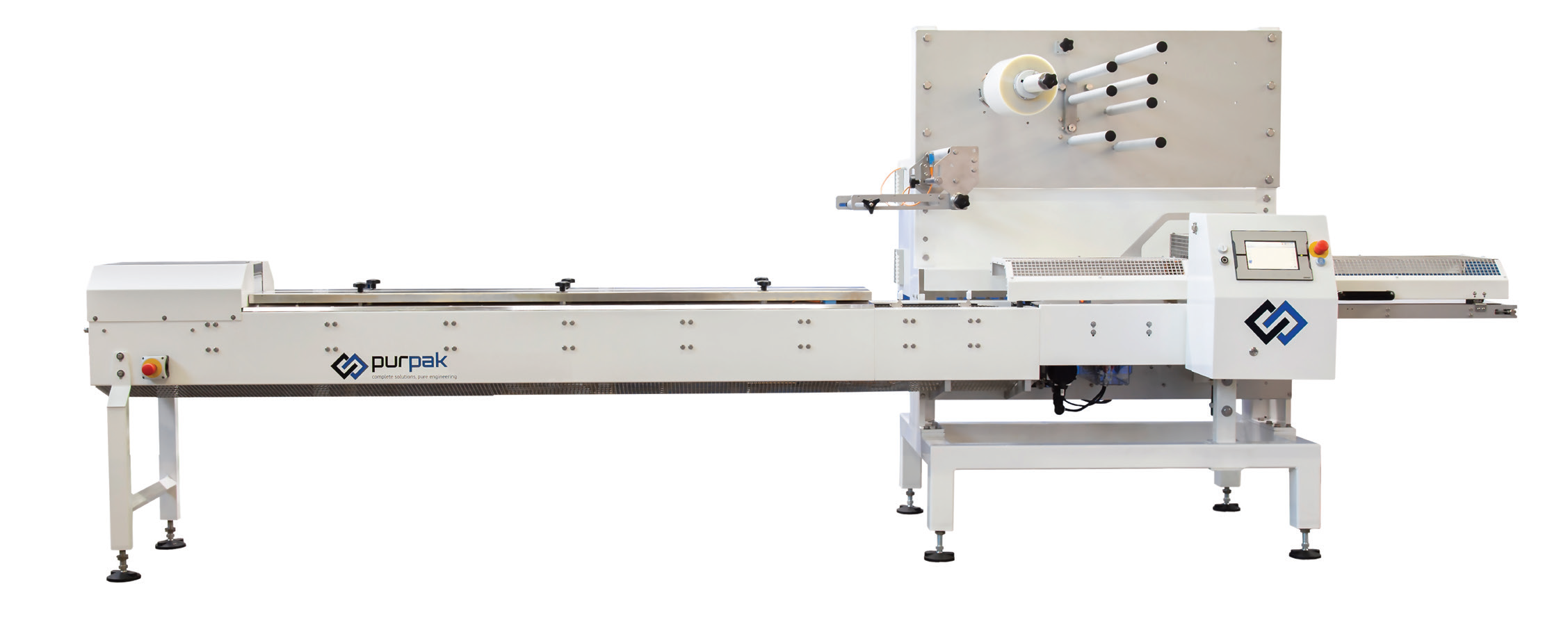

The PurFlow NX is built with the heavy demands of your production in mind. A modular, robust design with the latest industry 4.0 technology makes it the perfect fit for businesses of all sizes.
Unit of Measure

Specifications

Speed1 N/A Up to 120 ppm

Packaging Material

 N/A Compostables Mono-Materials Other Heat/Cold Sealing Materials Paper Polypropylene (PP)/Oriented Polypropylene (OPP)

Pneumatic Consumption

 N/A 2 L/min

Machine Dimensions

Machine Length

 N/A 14 ft 10 in.

Machine Width

 N/A 4 ft 5 in.

Power Requirement

Voltage

 N/A 208 to 480 V

Number of Phase

 N/A 3

Pneumatic Connection

Pneumatic Connection Pressure

 N/A 80 psi

Pneumatic Connection Diameter

 N/A 8 mm

Key Features

Key Features

 N/A
  • Color touchscreen HMI
  • OMAC pack ML logic
  • 200 product recipe capacity (expandable)
  • Direct-drive servo drives
  • Auto-open fin wheels with film-burn protection (FBP)
  • Misplaced product detection (MPP)
  • No product / no bag (NPNB)
  • OEE dashboard (optional)
  • Remote support (optional)
  • 9' 9" infeed with stainless steel deck plates and side guides
  • Offset quick-remove pushers
  • PEC for printed film error correction
  • Precise temperature control and adjustable sealing rollers
  • Extended infeed (optional)
  • 2UP/double jaws (optional)
  • Choice of seal patterns: vertical or horizontal (optional)
  • Motorized film control (optional)
  • Adjustable folding box
  • Zig-zag knife (optional)
  • Water cooled deck plates (optional)
  • Hand-fed to fully-automated feeding (optional)
  • Film perforation (optional)
  • Many more...
  • 1 Product/Film Dependent
